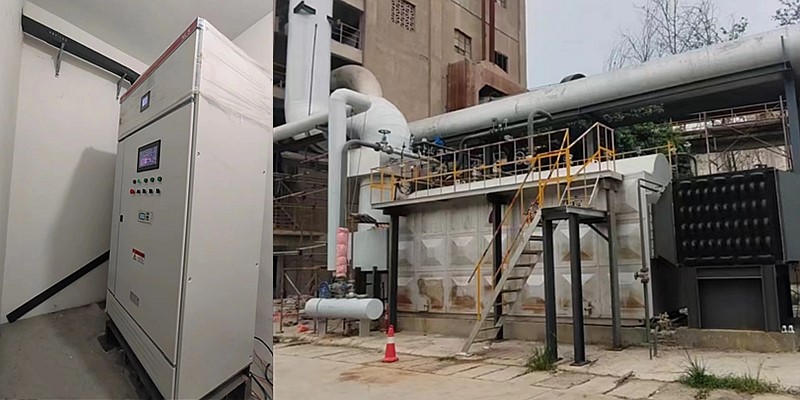

Henan Rentai's waste heat boiler control system utilizes the high-performance Siemens S7-200Smart PLC and a 10-inch high-definition touchscreen, along with self-developed control software. This ensures effective automation for the monitoring and control of the waste heat boiler.
Control and Communication Core
Control core options: Internationally renowned brand PLC (Siemens, Schneider, Mitsubishi, Omron, AB, etc.) to ensure the reliability and efficiency of the system. You can also choose to configure the host computer to ensure the reliability and efficiency of the system.
Human-machine interface: Provide 7-inch/10-inch/12-inch/15-inch high-resolution touch screen options (MCGS or Siemens series), user-friendly interface design, simplify the operation process.
Main communication interface: RS485 bus | Ethernet network | GPRS wireless communication, support seamless integration with industrial automation systems such as SCADA system and Internet of Things system.
Control cabinet type: podium cabinet | standard cabinet | MNS/GGD cabinet | piano-style operating table | Rittal cabinet, etc., easy to operate and maintain, while meeting the strict requirements of industrial sites.
System Features
Modular design: The system design complies with industrial standards and is divided into two levels: field sensor layer and field control layer. Each level provides a solid guarantee for the accuracy and safety of waste heat boiler operation.
On-site sensing layer: Use well-known brand sensors and actuators to ensure real-time and accurate monitoring of various operating parameters of the boiler.
On-site control cabinet: responsible for directly controlling the operation of the boiler, sending and receiving data and instructions to the superior, and ensuring the flexibility and independence of the system.
Dual operation mode: The system supports manual and automatic operation modes, ensuring that users can flexibly switch according to actual needs and optimize the operating experience.
Intelligent fault handling: Through in-depth analysis of historical accident data, our system not only provides basic monitoring and alarm functions, but also can predict faults and handle them quickly, significantly improving the reliability and safety of equipment.
System functions
Intelligent control: Using the latest PID adjustment technology, accurately control steam pressure and water level, and effectively optimize boiler operation efficiency.
Safety assurance: The emergency stop system is parallel to the hard interlock protection instruction to ensure that the system can respond immediately in an emergency to ensure the safety of personnel and equipment.
User authority management: The system has multi-level password protection to ensure that only authorized users can operate specific functions, which enhances the safety and confidentiality of operations.
Henan Rentai's waste heat boiler control system is not only a product, it is the embodiment of our commitment to safety, efficiency and innovation. The realization of each function and each optimization iteration is to make industrial production more intelligent, safe and efficient.
