Overview

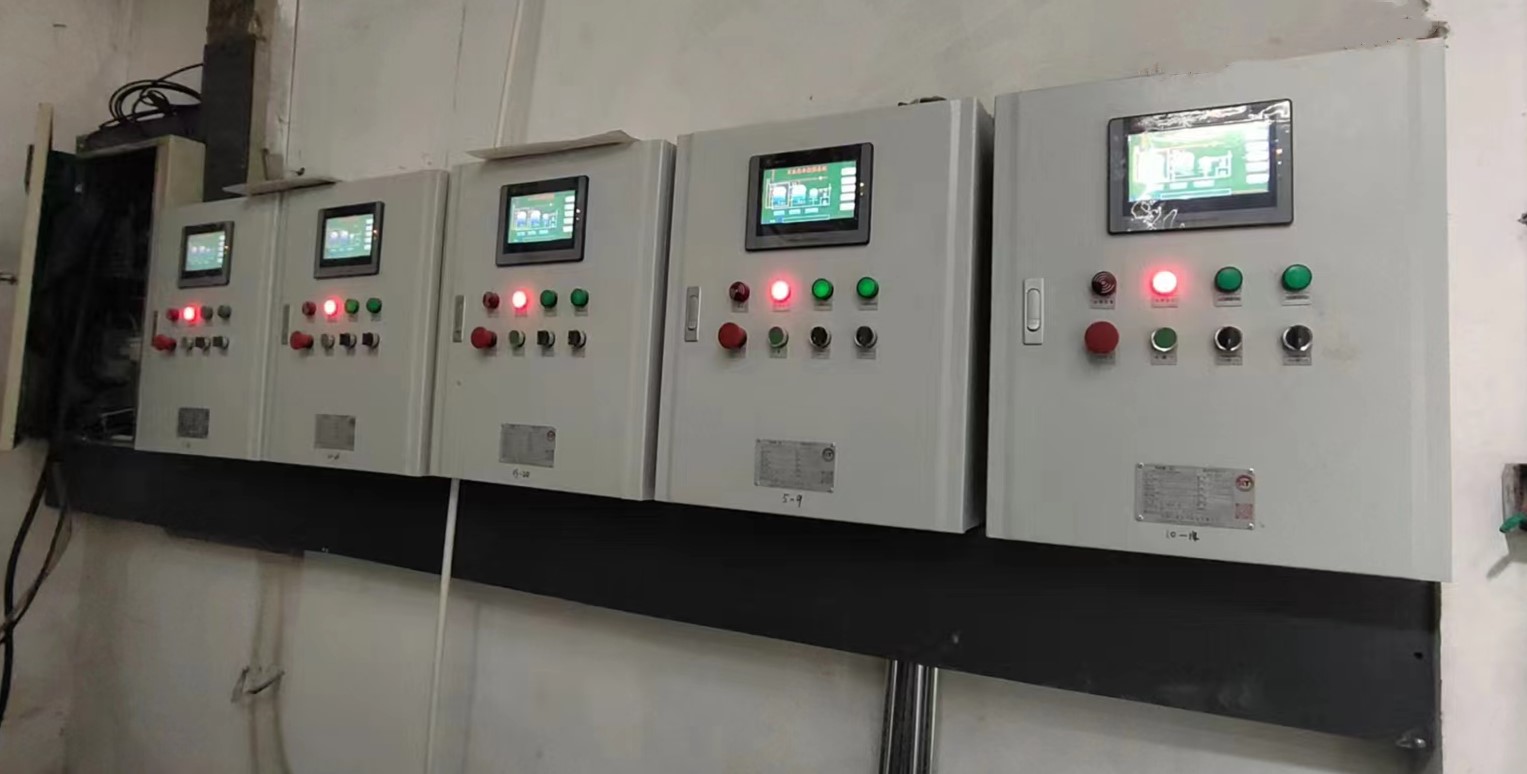

Henan Rentai’s heat exchange station control system is a highly integrated automation solution designed for optimizing thermal energy management and distribution. The system ensures efficient and energy-saving operation of the heat exchange system by precisely controlling the outlet and return water temperature and the operation of the circulating water pump (including start and stop and frequency conversion regulation).
Main control
Outlet and return water temperature control: The system monitors the water temperature in real time through high-precision sensors and automatically adjusts to maintain the set temperature range to ensure heating quality and comfort.
Circulating water pump control: The start and stop and speed of the water pump are controlled by PLC intelligent control, and frequency conversion adjustment can be performed according to real-time needs to optimize energy efficiency.
Main communication interface
RS485 bus: supports efficient data communication between devices.
Ethernet network: realizes network management of the system, convenient for remote monitoring and maintenance.
GPRS wireless communication: with the help of Internet of Things technology, the system can remotely transmit data and receive control commands to achieve truly intelligent management.
Control Core Options
PLC configuration
Users can choose different PLC brands and models according to specific needs:
Domestic PLC: integrated PLC+HMI, Haiwei PLC, etc.
Siemens series: S7-200 PLC, S7-200 Smart PLC, S7-300 PLC, S7-400 PLC
Other brand PLC: Schneider PLC/Mitsubishi PLC/Omron PLC/AB PLC, etc.
Human-machine interface
Provide a variety of sizes and brands of touch screen options, including but not limited to:
MCGS 7-inch, 10-inch, 15-inch touch screen
Siemens 7-inch, 10-inch, 12-inch, 15-inch touch screen
Application Scenarios
This control system is widely used in urban central heating, heating systems of large buildings, thermal management in industrial production processes, hotels supplying guests with hot water and heating, etc. It is particularly suitable for applications that require precise temperature control and energy efficiency management.
Through the heat exchange control system of Henan Rentai Electrical Equipment Co., Ltd., customers can achieve more intelligent, efficient and energy-saving thermal energy management, optimize operating costs and improve system reliability and stability.
